Four sealing lanes
A four-lane sealing layout is listed for this configuration. Pack dimensions determine the usable arrangement.
SNAP-OPEN PACKAGING

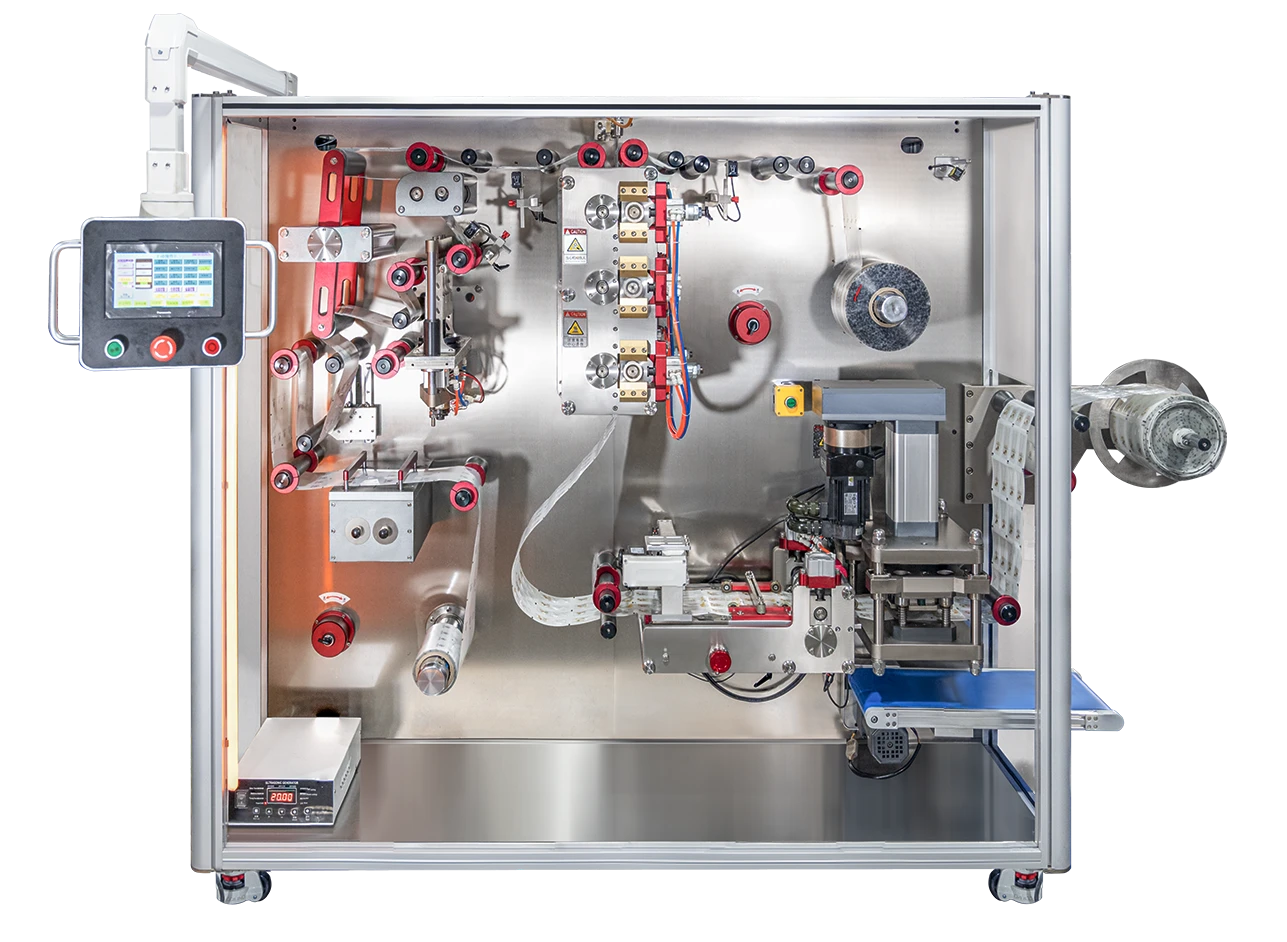

LEIMAI KP-4
Snap-open card packaging machine
The KP-4 forms heat-sealed card packs for liquids and pastes. Servo-driven registration aligns the bottom and cover webs in a four-lane sealing layout.
- Operating cycle
- 22-28 cycles/min
- Sealing lanes
- 4 lanes
Manufacturer reference configuration. Agree the final specification against your product, packaging materials and installation requirements.
Match the machine
to your product.
The LEIMAI KP-4 is a snap-open card packaging machine from Guangzhou Leimai Machinery Equipment Co., Ltd. Single-dose card packs for liquids and pastes, with tooling and opening geometry matched to the product.
Printed web registration
Servo-driven positioning aligns the bottom and cover films before heat sealing.
Card-format cutting
Cutting dimensions are specified around the finished card design.
01
Position the packaging webs
02
Dose and heat-seal
03
Cut and discharge card packs
KP-4
technical specifications
Reference values for the listed configuration. Keep the product, pack and utilities together when comparing machines.
Download the specification table| Specification | Value |
|---|---|
| Operating cycle | 22-28 cycles/min |
| Sealing lanes | 4 lanes |
| Power supply | Three-phase 380 V 50 Hz-60 Hz |
| Total power | 11 kW |
| Compressed air pressure | 0.6-0.8 MPa |
| Compressed air consumption | ≥0.5 m³ /min |
| Noise level | 50-65 dB |
| Overall dimensions | 2350 × 1000 × 1600 mm |
| Machine weight | 1600 kg |
Cycle rate is not finished packs per minute.
Confirm the fold-opening performance using the intended materials and product.
- 01Product and formulation or item dimensions
- 02Dose or cavity drawing and opening format
- 03Film and lidding material specifications
- 04Target finished output and planned working hours
- 05Destination country, electrical supply and utilities
KP-4
buyer questions
What is the KP-4 used for?
Single-dose card packs for liquids and pastes, with tooling and opening geometry matched to the product.
What determines the finished output?
The product, pack geometry, number of packs per cycle and filling or feeding conditions determine usable output. Evaluate the agreed format using representative materials.
What should I include in a KP-4 inquiry?
Send the product information, pack drawing, material specification, target output and installation country. Include the available electrical supply and utilities.
Technical content reviewed: . Reference: LEIMAI manufacturer technical listing (source page date: 2024-11-27). Final configuration is defined in the agreed equipment specification.
