Integrated process
Unwinding, plastic forming, filling, coding, creasing and cutting are described as programmed operations.
SINGLE-DOSE FILLING
LEIMAI GF-120P5
5-head single-dose form-fill-seal machine
The GF-120P5 combines plastic forming, liquid filling and pack finishing with 5 filling heads. It is intended for small liquid packs, with the formulation and packaging material specified together.
- Filling heads
- 5
- Maximum forming depth
- 12 mm
Manufacturer reference configuration. Agree the final specification against your product, packaging materials and installation requirements.
Match the machine
to your product.
The LEIMAI GF-120P5 is a 5-head single-dose form-fill-seal machine from Guangzhou Leimai Machinery Equipment Co., Ltd. Single-dose liquid packs for cosmetic and oral-liquid applications. Suitability depends on the formulation and selected packaging materials.
PLC control
The reference configuration uses programmable control and variable-frequency speed adjustment.
Liquid-contact design
The product description specifies stainless steel for the parts that contact the liquid; a material grade is not stated.
01
Unwind and form
02
Fill and code
03
Crease, cut and separate

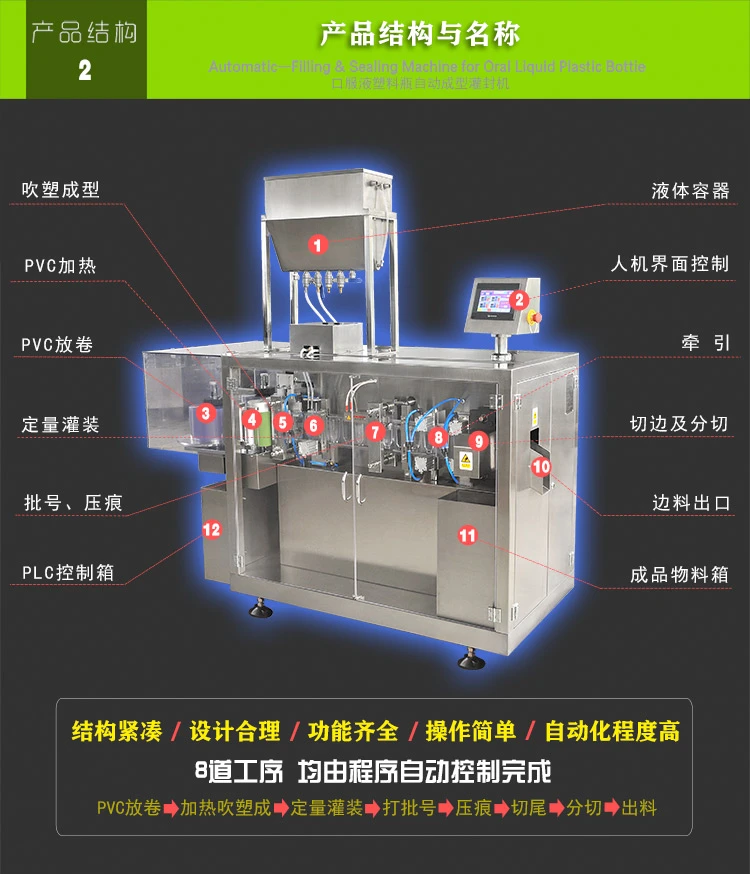

Component key
- 1 · Liquid hopper
- 2 · Operator interface
- 3 · Plastic forming area
- 4 · Film heating
- 5 · Film unwinding
- 6 · Metered filling
- 7 · Batch coding and creasing
- 8 · Film traction
- 9 · Edge cutting and separation
- 10 · Trim outlet
- 11 · Finished-product collection
- 12 · PLC cabinet
GF-120P5
technical specifications
Reference values for the listed configuration. Keep the product, pack and utilities together when comparing machines.
Download the specification table| Specification | Value |
|---|---|
| Filling heads | 5 |
| Maximum forming depth | 12 mm |
| Maximum forming plate | 110 × 120 mm |
| Filling volume | 1-50 mL |
| Packaging material | PVC/PE |
| Installed power | 7 kW |
| Machine weight | 900 kg |
| Overall dimensions | 2300 × 850 × 1400 mm |
Head count alone does not establish finished-pack output.
The equipment specification does not establish sterile or aseptic processing capability.
Make your proposal
specific to the job.
Send these details with your GF-120P5 inquiry.
Request a proposal- 01Product and formulation or item dimensions
- 02Dose or cavity drawing and opening format
- 03Film and lidding material specifications
- 04Target finished output and planned working hours
- 05Destination country, electrical supply and utilities
GF-120P5
buyer questions
What is the GF-120P5 used for?
Single-dose liquid packs for cosmetic and oral-liquid applications. Suitability depends on the formulation and selected packaging materials.
What determines the finished output?
The product, pack geometry, number of packs per cycle and filling or feeding conditions determine usable output. Evaluate the agreed format using representative materials.
What should I include in a GF-120P5 inquiry?
Send the product information, pack drawing, material specification, target output and installation country. Include the available electrical supply and utilities.
Technical content reviewed: . Reference: LEIMAI manufacturer technical listing (source page date: 2021-04-24). Final configuration is defined in the agreed equipment specification.
