Compact installation
The reference machine dimensions are 1500 × 600 × 1200 mm. Allow additional space for access, utilities and material handling.
BLISTER PACKAGING
LEIMAI DPB-80A
Compact blister packaging machine
The DPB-80A is a compact blister packaging machine for solid products such as tablets and capsules. Its documented configuration combines programmable control, adjustable operation and forming, sealing and cutting.
- Cutting cycle
- 10-35 cycles/min
- Forming size and depth
- 70 × 110 × 26 mm
Manufacturer reference configuration. Agree the final specification against your product, packaging materials and installation requirements.
Match the machine
to your product.
The LEIMAI DPB-80A is a compact blister packaging machine from Guangzhou Leimai Machinery Equipment Co., Ltd. Blister packs for solid products; the feeder and cavity layout must match the actual item.
Product-specific feeding
Choose the feeding arrangement around the dimensions and handling properties of the solid product.
Programmable operation
The product description specifies a programmable controller, variable-frequency speed adjustment and a touch panel.
01
Form the blister
02
Load solid products
03
Seal and cut the pack
DPB-80A
technical specifications
Reference values for the listed configuration. Keep the product, pack and utilities together when comparing machines.
Download the specification table| Specification | Value |
|---|---|
| Cutting cycle | 10-35 cycles/min |
| Forming size and depth | 70 × 110 × 26 mm |
| Compressed air pressure | 0.6-0.8 MPa |
| Total power | 3.0 kW |
| Main motor power | 0.75 kW |
| PVC film | 0.15-0.5 mm thickness × 80 mm width |
| PTP foil | 0.02-0.035 mm thickness × 80 mm width |
| Overall dimensions | 1500 × 600 × 1200 mm |
| Machine weight | 450 kg |
| Noise indicator | <75 dBA |

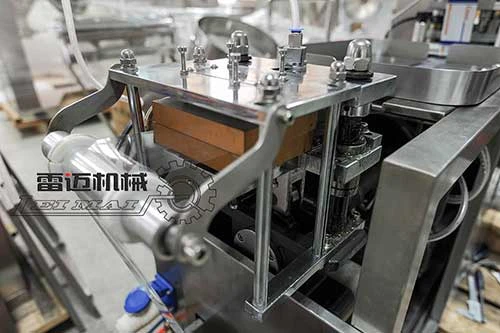

The component photograph shows the sealing area, not a complete machine layout.
Cycle frequency does not establish the finished output for a specific blister format.
Make your proposal
specific to the job.
Send these details with your DPB-80A inquiry.
Request a proposal- 01Product and formulation or item dimensions
- 02Dose or cavity drawing and opening format
- 03Film and lidding material specifications
- 04Target finished output and planned working hours
- 05Destination country, electrical supply and utilities
DPB-80A
buyer questions
What is the DPB-80A used for?
Blister packs for solid products; the feeder and cavity layout must match the actual item.
What determines the finished output?
The product, pack geometry, number of packs per cycle and filling or feeding conditions determine usable output. Evaluate the agreed format using representative materials.
What should I include in a DPB-80A inquiry?
Send the product information, pack drawing, material specification, target output and installation country. Include the available electrical supply and utilities.
Technical content reviewed: . Reference: LEIMAI manufacturer technical listing (source page date: 2021-06-22). Final configuration is defined in the agreed equipment specification.
Continue your comparison.
Compare equipmentDPK-260H
Alu/PVC and Alu/Alu blister packaging machine
The DPK-260H supports aluminium-plastic and aluminium-aluminium blister packaging. Its reference specification separates the cutting cycle and forming depth for the two pack constructions.
- Cutting cycle, Alu/PVC
- 25-60 cycles/min
- Cutting cycle, Alu/Alu
- 20-30 cycles/min
- Maximum forming depth, Alu/PVC
- 22 mm
DPP-250
Flat-plate blister packaging machine
The DPP-250 is a flat-plate blister packaging machine for solid products. The reference configuration uses a 250 mm packaging web, with forming dimensions and utilities listed specifically for the DPP-250.
- Cutting cycle
- 6-50 cycles/min
- Forming area
- 240 × 150 mm
- Forming depth
- 14 mm standard; 26 mm maximum
